Thanks to our GREAT friend, Cianty from Tom's Boring Mordheim Forum for his invaluable assistance. Make sure to visit his website; he is a great player and amazing artist! PM him (in the Death Squads forum) if you like the Tutorial!
______________________________________ Aquila ______________________________________

You Don’t Need A Fancy Camera
(To Take Great Photos of Your Miniatures)


Written by Hyun. This tutorial was originally posted on WeeToySoldiers.com and is now reposted here. Have a look at his blog for tons of more great articles.
--cianty


I often get compliments on the photos on the website. Photography is a hobby I’ve enjoyed for a number of years, and I try my best to achieve the best results possible with the equipment I have.

However, often it seems people think that “great camera gear = great photos.” People, that is just not so. All it takes is a basic camera, a basic understanding of lighting, and a basic image editing program to achieve great results. Did you note the common theme in those ingredients? They are all basic stuff. Today I hope to illustrate how easy it is to achieve great results using a run-of-the-mill digital camera and a free image editor. If you have a digital camera in your possession, you are 9/10th of the way there to getting great photos.

Obviously, there are miniature hobbyists and painters out there who are also excellent photographers. This guide is for those who are not happy with their miniatures photography and would like to achieve better results. I certainly do not claim to be an expert in this area; but it seems that there are a lot of people who would benefit immensely by a simple-to-follow tutorial (that I hope this turns out to be!).

For this demonstration, I will be using my wife’s Sony S600 digital camera. It’s a no-frills, basic, six-megapixel camera that came out two years ago that’s geared for people who just want a fully automatic camera. It lacks some of the features I use regularly for the hobby photography such as aperture priority, full manual mode, true macro mode, custom white balance, etc. (don’t know what some or any of those terms mean? Don’t worry, you don’t need to!), but is perfect for demonstrating the feasibility of using a consumer digital camera to achieve great results.

Before you embark on your way to better photography, there are some prep work you need to do. First of all, you need to find out some very basic facts about your camera. Either the manual that came with the camera or the manufacturer’s website will have full technical specifications for your camera. The one you need the most is the macro mode minimum focusing distance. That is, how close the subject can be to the camera and have the camera still focus. Make a note of this figure.

While you’ve got the manual, it’s a good idea to make sure that you know how to perform the following functions on the camera:
  • Change the exposure compensation value (make the image brighter or darker than the camera thinks it ought to be)
  • Put the camera in macro mode
  • Change the white balance setting, and if your camera has this feature, be able to set custom white balance
  • Disable built-in flash
  • Set timer
  • Be able to tell when the camera has achieved proper focus vs. out-of-focus warning
  • Have a rudimentary understanding of histogram and its function

Sounds simple? Well, judging from the photos posted everyday on various hobby discussion boards, it seems too many people skip reading the manual altogether, to their detriment!

For editing your photographs, if you don’t already have an image editor that you like/prefer, I highly recommend Picasa, published by Google (but available only for Windows 2000/XP/Vista, I’m afraid). It’s free and it doubles as an image manager (it creates a database of your images and thumbnails and makes it rather easy to manage your photos), and also has some handy image editing tools. A very nice feature of Picasa is that it never modifies your images as you edit them; it makes notes of what changes have been applied to what images in its own setting file, and thus your originals are never altered. Picasa lets you also save as JPGs the new versions of your originals, incorporating the changes you’ve applied to them. In this tutorial, I will be using Picasa to demonstrate various image editing tasks.

Right, so let’s assume you have an image editor on your computer already, or have downloaded and installed Picasa, and have the camera in front of you, and a number of miniatures you want to photograph. Let’s begin.

______________________________________

Here we have the setup. An even surface for the camera and the photo subject to sit on is a must. Most digital cameras have flat bottoms that you won’t need to do anything special to prop up the camera at an even level. For the subjects (miniatures), make sure that the background behind them is not distracting from the miniatures. Here I used a piece of paper curled and laid to sit against a rigid back support to achieve a blank backdrop.

Another GREAT Miniature Photography Guide 2008-010

My hobby room is lit by two 100-watt lamps pointing upwards to the white ceiling. When photographing, it’s absolutely essential to turn OFF the flash on the camera and make sure that the light shining on the miniatures is soft and indirect, not harsh direct light. How bright your lamps are, or how many you have, does not really matter, as you can adjust the settings on the camera to achieve proper exposure.

Another GREAT Miniature Photography Guide 2008-011

Here’s the Picasa software, in the image manager mode. To the left of the screen, you have the familiar Windows Explorer-type tree pane for navigating the contents of the hard drive. The right part shows the thumbnails of the images contained in the currently selected folder.

Another GREAT Miniature Photography Guide 2008-012

When you double-click on an image, Picasa instantaneously launches the Editor window:

Another GREAT Miniature Photography Guide 2008-013

Here you can view your image in greater detail, and also view the histogram (the distribution of light in your photo). To the left of the screen is the group of buttons that cover all the editing functions that Picasa has to offer.

Another GREAT Miniature Photography Guide 2008-014

“Crop” is for cutting out distracting, non-essential details from the photo. “Straighten” is for correcting out-of-alignment photos. “Redeye” — well, that won’t be necessary for the miniatures! “I’m Feeling Lucky” lets Picasa analyze and correct your photo the way it thinks it should be. I almost never use it, but sometimes it’s pretty good. “Auto Contrast” and “Auto Color” corrects, ah, contrast and color balances. I use “Auto Color” sometimes, “Auto Contrast” never, as I prefer more manual controls (available in the next tab, “Tuning”). “Fill Light” controls the brightness of the scene without blowing out the highlights.

______________________________________

All right, back to the miniatures. Here the miniatures have been arranged, and the camera — Sony S600 — is ready to take the picture. The LCD monitor on back of the camera makes it very easy to frame the scene:

Another GREAT Miniature Photography Guide 2008-015

Before taking the picture, I made sure of the following:

  • Changed the white balance setting to tungsten, as I was using that type of light bulbs
  • Disable built-in flash
  • Set timer

The S600 does not have a dedicated macro mode, but the manual tells me the minimum focusing distance is 12cm (c. 4.7 inches). The figures are well farther away than that, so all’s well.

Here’s the LCD screen of the S600 camera that shows the settings for the photo. It’s well worth to take a few minutes and discuss each setting I’ve marked with a red number.

Another GREAT Miniature Photography Guide 2008-016


1. White Balance Set to Tungsten.

White balance refers to the color temperature of the light sources. You’ll note that incandescent lights give off warm white color, while the flourescent bulbs are cooler. Daylight light bulbs to aid in painting give off different color light than others, as do LED lights, etc. White balance setting on the camera is your way of telling the camera what light sources are being used, so that the camera does not have to guess (which is what Automatic White Balance, or AWB), is. Most newer cameras do a bang-up job of guessing the color temperature of the light sources, but usually setting it to a specific white balance is more accurate. Some cameras lets you set custom white balance, for those truly tricky lighting situations, or if you just want more control over the photos. For a more wordy explanation, see my post here.

The admittedly underexposed image below shows the effects of white balance settings; on top, the camera tried to adjust the white balance automatically (AWB) and failed miserably. The same scene is at the bottom using the same camera, but with the white balance set properly.

Another GREAT Miniature Photography Guide 2008-017

2. Program (or Program Auto) Mode.

Most compact digital cameras have two auto modes: The Full Auto (usually a green rectangle with or without the word “Auto” in it), where the camera decides every single aspect of the picture making process (you simply point the camera at the subject and press the shutter), and Program Auto, which is not unlike the Full Auto but here you get to decide (and override) the camera on a few things, such as whether to fire the flash or not, what ISO sensitivity to use (more on this later), image quality, etc. Whenever possible, never use the Full Auto. You need to be able to set a few parameters yourself, despite your camera’s best intentions.

3. Timer.

Use timer whenever possible. With the camera sitting solidly on a flat surface, it may not seem necessary, but too often people jostle the camera as they press the shutter, resulting in blurred or less-than-sharp picture. Also, since you won’t be using the built-in flash and will be relying on ambient lighting, the shutter time is going to be far longer than what you can hand-hold without shaking the camera too much (and the resulting blur in your pictures). You can set the timer in a variation of 10 seconds, 2 seconds, and the newer custom (you set the length).

4. Resolution.

Most digital cameras are capable of capturing images in smaller resolution than the maximum possible. Always use the maximum resolution. Storage is cheap, and it’s easy to resize the images to smaller resolution on the computer later, but not the other way around.

5. JPG Quality.

All digital cameras let you determine the quality of the JPG images being saved (then there are digital SLRs and higher-end point-and-shoot cameras that can capture Raw images, but that’s not a subject for this article). Typically you have three settings — superfine, fine, standard, or some variation thereof. Setting it to higher compression results in smaller file sizes and thus you can store more images on your memory card, but I recommend against this. Always use the best quality (lowest compression, and thus biggest file sizes). Again, storage is cheap, and it’s always possible down the road to resize/reduce the image’s quality, if desired. Not the other way around.

6. ISO Setting.

ISO refers to the sensitivity of the sensor inside the camera that actually captures the image, to light. Without going into technical details here, suffice it to say that lower the ISO setting, better the image quality. Higher ISO settings come in handy when you are hand-holding the camera and can’t use the flash — for example, in a museum or a gallery or you don’t want to draw attention to yourself with the flash. So in such situations, achieving a proper exposure at the lowest (best image quality) ISO requires far longer than how long an average person can hold the camera without the handshake introducing blur to the image. Higher ISO makes the camera more sensitive to light, thus it requires shorter time to capture the scene with the available light. But the downside is that with heightened sensitivity comes increases sensor “noise” (interference, static, whathaveyou) and corresponding image degradation. With most compact digital cameras, ISO 400 or higher is not really usable. With miniatures photography using a tripod or resting the camera on a flat surface, the longer exposure time (also known as slower shutter speed) is not an issue, so it makes sense to use the lowest ISO setting giving the best image quality.

The image below shows the comparison between ISO 80 (the lowest on the Sony S600 camera), ISO 400, and ISO 1000 (highest on the S600):

Another GREAT Miniature Photography Guide 2008-018

… and the shutter speeds were, respectively, 1/8 second, 1/40 second, and 1/100 second.

7. Focus Area.

Self-explanatory, but make sure that you select focus mode that will achieve the focus you want. For example, if a figure is pointing a sword to his front, make sure you focus on the face, which presumably is in line with the rest of his body, rather than the sword tip, which most likely is in front of the figure and thus the rest of the figure will be out of focus.

Here’s an example: In the first picture, the camera has focused on the tip of the gun barrel of the Tau XV15 Stealth Suit figure, with the result that the rest of the body is quite blurred. In the second picture, the body is in focus, the gun barrel is a bit blurred, but the overall effect is more pleasing.

Another GREAT Miniature Photography Guide 2008-019

Of course, the best solution is to have the entire miniature in focus!

Another GREAT Miniature Photography Guide 2008-020

With compact digital cameras that lack aperture priority mode, this can be achieved by NOT using the macro mode and moving the camera away from the subject.

With all that preparation out of the way, let’s take some pictures.

CLICK! The shutter is released, and the first image is captured. Keeping in mind the golden rule of the digital photography (”everything looks good in the tiny 2.5″ LCD screen; download and review!”), I downloaded the image to the computer and opened up in Picasa.

Another GREAT Miniature Photography Guide 2008-021

The image is severly underexposed! The camera tried to calculate the proper exposure, but it was most likely fooled by the large amount of white in the backdrop. Hence the underexposure.

Now, at the bottom right corner of the Picasa screen, take a look at this spectacularly nifty feature (not of Picasa, but of general digital photography): Ladies and Gentlemen, meet histogram.

Another GREAT Miniature Photography Guide 2008-022

Histogram, simply put, shows you the distribution of light in the scene. Here’s how Canon describes it:

Another GREAT Miniature Photography Guide 2008-023

Some digital cameras lets you see histogram as you compose the image (aka live view), which is supremely neat. You can see how the exposure is going to be, and thus correct the problem (by changing the exposure compensation value) even before the first shot.

Still others shows you histogram right after the picture is taken, when you are reviewing the images on the camera’s screen. This is useful as well — although not as useful as the histogram in live view mentioned above — as you can usually retake the offending picture again right away.

Then there are cameras (such as the S600 that I’m using for this article) that do not show histogram anywhere, period. For those we need to download the images to the computer and view the histogram with the image editing program.

So, we need to retake the image, increasing the exposure compensation value to override what the camera thinks the proper exposure should be. After a number of tests, I finally achieved the result that I was happy with (I ended up increasing exposure compensation by +1.7, which is pretty significant):

Another GREAT Miniature Photography Guide 2008-024

… and the histogram:

Another GREAT Miniature Photography Guide 2008-025

It should be noted here that I could have corrected the original underexposed image by using Picasa’s editing tools. A couple of quick adjustments under the “Tuning” tab in the editing window…

Another GREAT Miniature Photography Guide 2008-026

… results in this!

Another GREAT Miniature Photography Guide 2008-027

Note the difference before and after, and the histogram before and after:

Another GREAT Miniature Photography Guide 2008-028

Another GREAT Miniature Photography Guide 2008-029

I still prefer to have the proper exposure captured in camera, as it’s always better to start the editing steps on the computer with images that are best possible quality. It’s easy to change and modify the original images, but you can’t add what wasn’t there in the first place.

You’ve probably noticed that the past few images all have pink-ish tint to them? What happened? This is the result of the camera’s custom balance not quite being up to the task of correctly analyzing the light sources. Some of the more advanced cameras have the setting where you can apply custom white balance values, but the S600 I used does not. So it’s back to Picasa to eliminate the pink tint.

Picasa has a command called “Auto Color,” which tries to render the image’s colors correctly. Usually it works well, although sometimes more user input is required.

Another GREAT Miniature Photography Guide 2008-030

Here’s the result of Auto Color command superimposed on the right half of the screen. Can you tell the difference?

Another GREAT Miniature Photography Guide 2008-031

It still needs a bit of help. So, going back to the “Tuning” tab, I use the “Neutral Color Picker” tool to properly achieve the white balance:

Another GREAT Miniature Photography Guide 2008-032

______________________________________

From here on, it’s mostly finishing touches.

If your image is not horizontally aligned, you can use Picasa’s “Straighten” tool to rotate it.

Another GREAT Miniature Photography Guide 2008-033

Picasa has a bevy of special effects you can apply to the image. Probably the most useful one of the bunch is “sharpen.”

Another GREAT Miniature Photography Guide 2008-034

When you’re all done tinkering with the image, it’s time to crop and export. Remember, all your editing so far in Picasa do not change the original image, they are stored in a special Picasa file that records the changes you’ve made. What we now need to do is make a copy of the original, applying those changes in the process.

Here’s the crop window…

Another GREAT Miniature Photography Guide 2008-035

… and the final image.

Another GREAT Miniature Photography Guide 2008-036

Press the “Export” button under the main editing window, and the “Export to Folder” dialogue pops up. Here you can select the destination on your hard drive, the name of the folder, whether to resize it down or keep the original size, and the quality of JPG. You can export multiple files at a time.

Another GREAT Miniature Photography Guide 2008-037

… and when the export process is complete, Windows Explorer opens at the destination folder, showing the contents.

Another GREAT Miniature Photography Guide 2008-038

And here’s the fruit of my labor:

Another GREAT Miniature Photography Guide 2008-039

From here you can upload the image to any number of photo hosting sites and share your work!

__________________________________

For those desiring to get close-up photos of their work, the key factor is to remember the minimum focusing distance for your camera in macro mode. Remember, the minimum focusing distance changes depending on the optical zoom setting — the distance is closer at the wider end of the zoom range, and much farther at the telephoto end.

The Sony S600 does not, as noted previously, have a dedicated macro mode, and the minimum focusing distance is around 12cm (just under 5 inches). I basically moved the camera close to the miniature, then moved it back a little bit at a time, trying to focus, until the focus lock was achieved. Here’s the Tau XV15 Stealth Suit at the closest focusing distance to the camera:

Another GREAT Miniature Photography Guide 2008-040

… which is a bit meaningless, really, until you look at the image at 100% crop. 100% crop is viewing the image at the pixel level. Typically, your monitor is set at 800, 1024, or 1280 pixels across. So when an image that’s wider than that is shown, the image viewing software resizes it down to fit the screen, so that you can take in the entire image at a glance, rather than having to scroll horizontally. 100% crop is viewing the image without any resizing.

Depending on how your browser’s configured, the image may “shrink-to-fit” your screen. Be sure to view it at 100% after it’s done loading to get the full effect. Alternatively you can right-click on the link, and choose “Save target as”/”Save link as”, and download it to your computer and view it with your favorite image viewer.

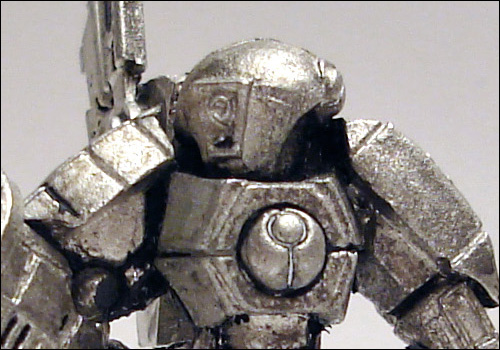

… and here’s a cropped 100% section of the face/chest area:

Another GREAT Miniature Photography Guide 2008-041

Well, that’s it. Hopefully this tutorial has given you a better understanding of what’s involved in making great photos of your miniatures. I would, as always, appreciate any comments for constructive feedbacks. Thanks.
